Package | com.dwuser.ss4.ui |
Class | public class GallerySelector |
Inheritance | GallerySelector VBox Box Container UIComponent FlexSprite flash.display.Sprite |
displayType
style parameter.
For a higher level of control, you can use a custom XML item descriptor as specified through the ItemDescriptor
pseudo-
property (see below for more information).
The items are laid out in a grid, left-to-right and top-to-bottom. The number of columns is determined by the columns
style parameter.
If more galleries exist than fit in the available area, paging controls automatically appear at the bottom of the element. If you want to have complete control over
the appearance of the paging controls, you can specify a custom XML descriptor through the PagingControls
pseudo-property. The speed of the transition between
each page of gallery items is controlled by the scrollTime
parameter. The default status label (if not using a custom paging controls descriptor) is controlled
by the statusLabel
parameter.
By default, when an item in the GallerySelector is clicked the corresponding gallery is opened. If the hideOnSelection
style parameter is left at its default
value of true
, the actual GallerySelector element is hidden as well. You can set this parameter to false
to disable this behavior.
If you wish to use a more compact gallery selection element which appears on the same screen as the images, consider instead the GalleryBar element. It displays a small and unobtrusive bar at the top of the screen which lists the various gallery titles. When hovered over, it displays a tooltip with more information about the gallery.
Layout XML Syntax Example:
The GallerySelector class inherits all of the tag attributes of its superclass.
<GallerySelector Styles columns="2" spacing="10" outerSpacing="Value defined for spacing parameter" displayType="standard|images|imagesHoverTitle" imageHeight="100" transitionTime="1000" scrollTime="1000" statusLabel="Page {N} of {T}" hideOnSelection="true" selectionLayoutView="" selectionDelay="0|1100" Events event_galleryItemClick="Default handler" > Optional Child Descriptor Nodes: (see Pseudo-properties corresponding to node names below) <ItemDescriptor> ... Custom Descriptor Here ... </ItemDescriptor> <PagingControls> ... Custom Descriptor Here ... </PagingControls> </GallerySelector>

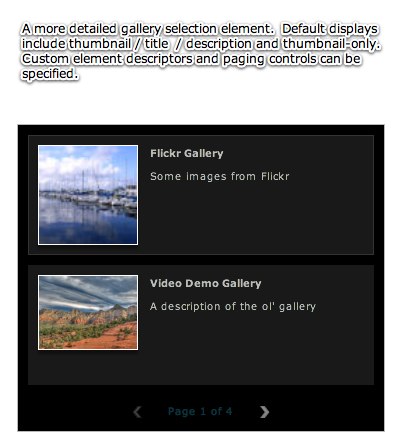

Element Pictorial Example:
See also
Property | Defined by | ||
---|---|---|---|
activeEffects : Array
The list of effects that are currently playing on the component,
as an Array of EffectInstance instances.
| UIComponent | ||
autoLayout : Boolean
If
true , measurement and layout are done
when the position or size of a child is changed. | Container | ||
automationDelegate : Object
The delegate object that handles the automation-related functionality.
| UIComponent | ||
automationName : String
Name that can be used as an identifier for this object.
| UIComponent | ||
automationTabularData : Object
An implementation of the
IAutomationTabularData interface, which
can be used to retrieve the data. | UIComponent | ||
automationValue : Array
This value generally corresponds to the rendered appearance of the
object and should be usable for correlating the identifier with
the object as it appears visually within the application.
| UIComponent | ||
baselinePosition : Number
The y-coordinate of the baseline
of the first line of text of the component.
| UIComponent | ||
borderMetrics : EdgeMetrics
Returns an EdgeMetrics object that has four properties:
left , top , right ,
and bottom . | Container | ||
cacheHeuristic : Boolean
Used by Flex to suggest bitmap caching for the object.
| UIComponent | ||
cachePolicy : String
Specifies the bitmap caching policy for this object.
| UIComponent | ||
childDescriptors : Array
Array of UIComponentDescriptor objects produced by the MXML compiler.
| Container | ||
className : String
The name of this instance's class, such as
"Button" . | UIComponent | ||
clipContent : Boolean
Whether to apply a clip mask if the positions and/or sizes
of this container's children extend outside the borders of
this container.
| Container | ||
contentMouseX : Number
Returns the x position of the mouse, in the content coordinate system.
| Container | ||
contentMouseY : Number
Returns the y position of the mouse, in the content coordinate system.
| Container | ||
creatingContentPane : Boolean
Containers use an internal content pane to control scrolling.
| Container | ||
creationIndex : int
Specifies the order to instantiate and draw the children
of the container.
| Container | ||
creationPolicy : String
The child creation policy for this Container.
| Container | ||
currentLooperData : Object
When using this component as the child of a DataLooper element, this holds the current element's corresponding looping data.
| UIComponent | ||
currentState : String
The current view state of the component.
| UIComponent | ||
cursorManager : ICursorManager
Gets the CursorManager that controls the cursor for this component
and its peers.
| UIComponent | ||
data : Object
The
data property lets you pass a value
to the component when you use it in an item renderer or item editor. | Container | ||
defaultButton : IFlexDisplayObject
The Button control designated as the default button
for the container.
| Container | ||
descriptor : UIComponentDescriptor
Reference to the UIComponentDescriptor, if any, that was used
by the
createComponentFromDescriptor() method to create this
UIComponent instance. | UIComponent | ||
document : Object
A reference to the document object associated with this UIComponent.
| UIComponent | ||
doubleClickEnabled : Boolean
Specifies whether the UIComponent object receives
doubleClick events. | UIComponent | ||
enabled : Boolean
Whether the component can accept user interaction.
| UIComponent | ||
errorString : String
The text that will be displayed by a component's error tip when a
component is monitored by a Validator and validation fails.
| UIComponent | ||
explicitHeight : Number
Number that specifies the explicit height of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
explicitMaxHeight : Number
Number that specifies the maximum height of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
explicitMaxWidth : Number
Number that specifies the maximum width of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
explicitMinHeight : Number
Number that specifies the minimum height of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
explicitMinWidth : Number
Number that specifies the minimum width of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
explicitWidth : Number
Number that specifies the explicit width of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
flexContextMenu : IFlexContextMenu
The context menu for this UIComponent.
| UIComponent | ||
focusEnabled : Boolean
Indicates whether the component can receive focus when tabbed to.
| UIComponent | ||
focusManager : IFocusManager
Gets the FocusManager that controls focus for this component
and its peers.
| UIComponent | ||
focusPane : Sprite
The focus pane associated with this object.
| UIComponent | ||
globalX : Number | UIComponent | ||
globalY : Number | UIComponent | ||
height : Number
Number that specifies the height of the component, in pixels,
in the parent's coordinates.
| UIComponent | ||
horizontalLineScrollSize : Number
Number of pixels to move when the left- or right-arrow
button in the horizontal scroll bar is pressed.
| Container | ||
horizontalPageScrollSize : Number
Number of pixels to move when the track in the
horizontal scroll bar is pressed.
| Container | ||
horizontalScrollBar : ScrollBar
The horizontal scrollbar used in this container.
| Container | ||
horizontalScrollPolicy : String
Specifies whether the horizontal scroll bar is always present,
always absent, or automatically added when needed.
| Container | ||
horizontalScrollPosition : Number
The current position of the horizontal scroll bar.
| Container | ||
icon : Class
The Class of the icon displayed by some navigator
containers to represent this Container.
| Container | ||
id : String
ID of the component.
| UIComponent | ||
includeInLayout : Boolean
Specifies whether this component is included in the layout of the
parent container.
| UIComponent | ||
inheritingStyles : Object
The beginning of this component's chain of inheriting styles.
| UIComponent | ||
initialized : Boolean
A flag that determines if an object has been through all three phases
of layout: commitment, measurement, and layout (provided that any were required).
| UIComponent | ||
instanceIndex : int
The index of a repeated component.
| UIComponent | ||
instanceIndices : Array
An Array containing the indices required to reference
this UIComponent object from its parent document.
| UIComponent | ||
isDocument : Boolean
Determines whether this UIComponent instance is a document object,
that is, whether it is at the top of the hierarchy of a Flex
application, MXML component, or ActionScript component.
| UIComponent | ||
isPopUp : Boolean
Set to
true by the PopUpManager to indicate
that component has been popped up. | UIComponent | ||
ItemDescriptor : XML
[Pseudo-property only!] Specifies the XML descriptor used for the creation of the item blocks which represent each gallery.
| GallerySelector | ||
label : String
The text displayed by some navigator containers to represent
this Container.
| Container | ||
maxHeight : Number
Number that specifies the maximum height of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
maxHorizontalScrollPosition : Number
The largest possible value for the
horizontalScrollPosition property. | Container | ||
maxVerticalScrollPosition : Number
The largest possible value for the
verticalScrollPosition property. | Container | ||
maxWidth : Number
Number that specifies the maximum width of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
measuredHeight : Number
The default height of the component, in pixels.
| UIComponent | ||
measuredMinHeight : Number
The default minimum height of the component, in pixels.
| UIComponent | ||
measuredMinWidth : Number
The default minimum width of the component, in pixels.
| UIComponent | ||
measuredWidth : Number
The default width of the component, in pixels.
| UIComponent | ||
minHeight : Number
Number that specifies the minimum height of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
minWidth : Number
Number that specifies the minimum width of the component,
in pixels, in the component's coordinates.
| UIComponent | ||
miscHolder : Object
A utility holder for any various properties
| UIComponent | ||
moduleFactory : IFlexModuleFactory
The moduleFactory that is used to create TextFields in the correct SWF context.
| UIComponent | ||
mouseFocusEnabled : Boolean
Whether you can receive focus when clicked on.
| UIComponent | ||
move_enableProtection : Boolean = false | UIComponent | ||
nestLevel : int
Depth of this object in the containment hierarchy.
| UIComponent | ||
nonInheritingStyles : Object
The beginning of this component's chain of non-inheriting styles.
| UIComponent | ||
numAutomationChildren : int
The number of automation children this container has.
| UIComponent | ||
numChildren : int
Number of child components in this container.
| Container | ||
owner : DisplayObjectContainer
The owner of this UIComponent.
| UIComponent | ||
PagingControls : XML
[Pseudo-property only!] Specifies the XML descriptor used for the creation of the paging controls (if there is more than one page of galleries to be shown).
| GallerySelector | ||
parent : DisplayObjectContainer
The parent container or component for this component.
| UIComponent | ||
parentApplication : Object
A reference to the Application object that contains this UIComponent
instance.
| UIComponent | ||
parentDocument : Object
A reference to the parent document object for this UIComponent.
| UIComponent | ||
percentHeight : Number
Number that specifies the height of a component as a percentage
of its parent's size.
| UIComponent | ||
percentWidth : Number
Number that specifies the width of a component as a percentage
of its parent's size.
| UIComponent | ||
processedDescriptors : Boolean
Set to
true after immediate or deferred child creation,
depending on which one happens. | UIComponent | ||
rawChildren : IChildList
A container typically contains child components, which can be enumerated
using the
Container.getChildAt() method and
Container.numChildren property. | Container | ||
repeater : IRepeater
A reference to the Repeater object
in the parent document that produced this UIComponent.
| UIComponent | ||
repeaterIndex : int
The index of the item in the data provider
of the Repeater that produced this UIComponent.
| UIComponent | ||
repeaterIndices : Array
An Array containing the indices of the items in the data provider
of the Repeaters in the parent document that produced this UIComponent.
| UIComponent | ||
repeaters : Array
An Array containing references to the Repeater objects
in the parent document that produced this UIComponent.
| UIComponent | ||
scaleX : Number
Number that specifies the horizontal scaling factor.
| UIComponent | ||
scaleY : Number
Number that specifies the vertical scaling factor.
| UIComponent | ||
screen : Rectangle
Returns an object that contains the size and position of the base
drawing surface for this object.
| UIComponent | ||
setActualSize_enableProtection : Boolean = false | UIComponent | ||
setVisible_enableProtection : Boolean = true | UIComponent | ||
showInAutomationHierarchy : Boolean
A flag that determines if an automation object
shows in the automation hierarchy.
| UIComponent | ||
slideshow : FlashSlideshow
A reference to the main slideshow
| GallerySelector | ||
states : Array
The view states that are defined for this component.
| UIComponent | ||
styleClassOverridesInline : Boolean = true
Specifies if class-specific styles (as defined by the
styleName property) override inline styles. | UIComponent | ||
styleDeclaration : CSSStyleDeclaration
Storage for the inline inheriting styles on this object.
| UIComponent | ||
styleName : Object
The class style used by this component.
| UIComponent | ||
systemManager : ISystemManager
Returns the SystemManager object used by this component.
| UIComponent | ||
toolTip : String
Text to display in the ToolTip.
| UIComponent | ||
transitions : Array
An Array of Transition objects, where each Transition object defines a
set of effects to play when a view state change occurs.
| UIComponent | ||
tweeningProperties : Array
Array of properties that are currently being tweened on this object.
| UIComponent | ||
uid : String
A unique identifier for the object.
| UIComponent | ||
updateCompletePendingFlag : Boolean
A flag that determines if an object has been through all three phases
of layout validation (provided that any were required).
| UIComponent | ||
validationSubField : String
Used by a validator to associate a subfield with this component.
| UIComponent | ||
verticalLineScrollSize : Number
Number of pixels to scroll when the up- or down-arrow
button in the vertical scroll bar is pressed,
or when you scroll by using the mouse wheel.
| Container | ||
verticalPageScrollSize : Number
Number of pixels to scroll when the track
in the vertical scroll bar is pressed.
| Container | ||
verticalScrollBar : ScrollBar
The vertical scrollbar used in this container.
| Container | ||
verticalScrollPolicy : String
Specifies whether the vertical scroll bar is always present,
always absent, or automatically added when needed.
| Container | ||
verticalScrollPosition : Number
The current position of the vertical scroll bar.
| Container | ||
viewMetrics : EdgeMetrics
Returns an object that has four properties:
left ,
top , right , and bottom . | Container | ||
viewMetricsAndPadding : EdgeMetrics
Returns an object that has four properties:
left ,
top , right , and bottom . | Container | ||
visible : Boolean
Controls the visibility of this UIComponent.
| UIComponent | ||
visible_unprotected : Boolean
If setVisible_enableProtection is enabled, this allows access to determine what the pseudo-state is -- that is, what's been requested, regardless of any prevention of default behavior.
| UIComponent | ||
width : Number
Number that specifies the width of the component, in pixels,
in the parent's coordinates.
| UIComponent | ||
x : Number
Number that specifies the component's horizontal position,
in pixels, within its parent container.
| UIComponent | ||
xmlDescriptor : XML
For certain dynamically created elements, this represents the XML node used to create that element.
| UIComponent | ||
y : Number
Number that specifies the component's vertical position,
in pixels, within its parent container.
| UIComponent |
Method | Defined by | ||
---|---|---|---|
GallerySelector | |||
addChild(child:DisplayObject):DisplayObject
Adds a child DisplayObject to this Container.
| Container | ||
addChildAt(child:DisplayObject, index:int):DisplayObject
Adds a child DisplayObject to this Container.
| Container | ||
callLater(method:Function, args:Array = null):void
Queues a function to be called later.
| UIComponent | ||
clearStyle(styleProp:String):void
Deletes a style property from this component instance.
| UIComponent | ||
contentToGlobal(point:Point):Point
Converts a
Point object from content coordinates to global coordinates. | Container | ||
contentToLocal(point:Point):Point
Converts a
Point object from content to local coordinates. | Container | ||
createAutomationIDPart(child:IAutomationObject):Object
Returns a set of properties that identify the child within
this container.
| UIComponent | ||
Given a single UIComponentDescriptor, create the corresponding
component and add the component as a child of this Container.
| Container | ||
createComponentsFromDescriptors(recurse:Boolean = true):void
Iterate through the Array of
childDescriptors ,
and call the createComponentFromDescriptor() method for each one. | Container | ||
createReferenceOnParentDocument(parentDocument:IFlexDisplayObject):void
Creates an
id reference to this IUIComponent object
on its parent document object. | UIComponent | ||
deleteReferenceOnParentDocument(parentDocument:IFlexDisplayObject):void
Deletes the
id reference to this IUIComponent object
on its parent document object. | UIComponent | ||
Returns a UITextFormat object corresponding to the text styles
for this UIComponent.
| UIComponent | ||
dispatchEvent(event:Event):Boolean
Dispatches an event into the event flow.
| UIComponent | ||
drawFocus(isFocused:Boolean):void
Shows or hides the focus indicator around this component.
| UIComponent | ||
drawRoundRect(x:Number, y:Number, w:Number, h:Number, r:Object = null, c:Object = null, alpha:Object = null, rot:Object = null, gradient:String = null, ratios:Array = null, hole:Object = null):void
Programatically draws a rectangle into this skin's Graphics object.
| UIComponent | ||
effectFinished(effectInst:IEffectInstance):void
Called by the effect instance when it stops playing on the component.
| UIComponent | ||
effectStarted(effectInst:IEffectInstance):void
Called by the effect instance when it starts playing on the component.
| UIComponent | ||
endEffectsStarted():void
Ends all currently playing effects on the component.
| UIComponent | ||
executeBindings(recurse:Boolean = false):void
Executes all the data bindings on this Container.
| Container | ||
executeChildBindings(recurse:Boolean):void
Executes the bindings into this Container's child UIComponent objects.
| Container | ||
finishPrint(obj:Object, target:IFlexDisplayObject):void
Called after printing is complete.
| UIComponent | ||
getAutomationChildAt(index:int):IAutomationObject
Provides the automation object at the specified index.
| UIComponent | ||
getChildAt(index:int):DisplayObject
Gets the nth child component object.
| Container | ||
getChildByName(name:String):DisplayObject
Returns the child whose
name property is the specified String. | Container | ||
getChildIndex(child:DisplayObject):int
Gets the zero-based index of a specific child.
| Container | ||
getChildren():Array
Returns an Array of DisplayObject objects consisting of the content children
of the container.
| Container | ||
getClassStyleDeclarations():Array
Finds the type selectors for this UIComponent instance.
| UIComponent | ||
getConstraintValue(constraintName:String):*
Returns a layout constraint value, which is the same as
getting the constraint style for this component.
| UIComponent | ||
getDescendantByName(name:String):DisplayObject
Searches all children for the first child named with the passed value; returns that child, or null if not found.
| UIComponent | ||
getDescendantsByName(name:String):Array
Searches all children for all children named with the passed value; returns an array with those children, or an empty array if none found.
| UIComponent | ||
getExplicitOrMeasuredHeight():Number
A convenience method for determining whether to use the
explicit or measured height
| UIComponent | ||
getExplicitOrMeasuredWidth():Number
A convenience method for determining whether to use the
explicit or measured width
| UIComponent | ||
getFocus():InteractiveObject
Gets the object that currently has focus.
| UIComponent | ||
getRepeaterItem(whichRepeater:int = -1):Object
Returns the item in the
dataProvider that was used
by the specified Repeater to produce this Repeater, or
null if this Repeater isn't repeated. | UIComponent | ||
getStyle(styleProp:String):*
Gets a style property that has been set anywhere in this
component's style lookup chain.
| UIComponent | ||
getVisibleRect(targetParent:DisplayObject = null):Rectangle
MOVED OVER FROM SDK 3.2 UIComponent - Allows for popped-up alerts to be displayed correctly - NGR MOVED 11-20-08
| UIComponent | ||
globalToContent(point:Point):Point
Converts a
Point object from global to content coordinates. | Container | ||
horizontalGradientMatrix(x:Number, y:Number, width:Number, height:Number):Matrix
Returns a box Matrix which can be passed to the
drawRoundRect() method
as the rot parameter when drawing a horizontal gradient. | UIComponent | ||
initialize():void
Initializes the internal structure of this component.
| UIComponent | ||
initializeRepeaterArrays(parent:IRepeaterClient):void
Initializes various properties which keep track of repeated instances
of this component.
| UIComponent | ||
invalidateDisplayList():void
Marks a component so that its
updateDisplayList()
method gets called during a later screen update. | UIComponent | ||
invalidateProperties():void
Marks a component so that its
commitProperties()
method gets called during a later screen update. | UIComponent | ||
invalidateSize():void
Marks a component so that its
measure()
method gets called during a later screen update. | UIComponent | ||
localToContent(point:Point):Point
Converts a
Point object from local to content coordinates. | Container | ||
measureHTMLText(htmlText:String):TextLineMetrics
Measures the specified HTML text, which may contain HTML tags such
as
<font> and <b> ,
assuming that it is displayed
in a single-line UITextField using a UITextFormat
determined by the styles of this UIComponent. | UIComponent | ||
measureText(text:String):TextLineMetrics
Measures the specified text, assuming that it is displayed
in a single-line UITextField using a UITextFormat
determined by the styles of this UIComponent.
| UIComponent | ||
move(x:Number, y:Number):void
Moves the component to a specified position within its parent.
| UIComponent | ||
move_unprotected(x:Number, y:Number):void
Same as move, but cannot be prevented via the protection_move event.
| UIComponent | ||
notifyStyleChangeInChildren(styleProp:String, recursive:Boolean):void
Propagates style changes to the children.
| UIComponent | ||
owns(child:DisplayObject):Boolean
Returns
true if the chain of owner properties
points from child to this UIComponent. | UIComponent | ||
parentChanged(p:DisplayObjectContainer):void
Called by Flex when a UIComponent object is added to or removed from a parent.
| UIComponent | ||
pixelsToPercent(pxl:Number):Number
Method used to convert number of pixels to a
percentage relative to the contents of this container.
| Box | ||
prepareToPrint(target:IFlexDisplayObject):Object
Prepares an IFlexDisplayObject for printing.
| UIComponent | ||
regenerateStyleCache(recursive:Boolean):void
Builds or rebuilds the CSS style cache for this component
and, if the
recursive parameter is true ,
for all descendants of this component as well. | UIComponent | ||
registerEffects(effects:Array):void
For each effect event, registers the EffectManager
as one of the event listeners.
| UIComponent | ||
removeAllChildren():void
Removes all children from the child list of this container.
| Container | ||
removeChild(child:DisplayObject):DisplayObject
Removes a child DisplayObject from the child list of this Container.
| Container | ||
removeChildAt(index:int):DisplayObject
Removes a child DisplayObject from the child list of this Container
at the specified index.
| Container | ||
replayAutomatableEvent(event:Event):Boolean
Replays the specified event.
| UIComponent | ||
resolveAutomationIDPart(criteria:Object):Array
Resolves a child by using the id provided.
| UIComponent | ||
resumeBackgroundProcessing():void
[static]
Resumes the background processing of methods
queued by
callLater() , after a call to
suspendBackgroundProcessing() . | UIComponent | ||
setActualSize(w:Number, h:Number):void
Sizes the object.
| UIComponent | ||
setActualSize_unprotected(w:Number, h:Number):void
Same as setActualSize, but is not cancelable via the protection_size event.
| UIComponent | ||
setChildIndex(child:DisplayObject, newIndex:int):void
Sets the index of a particular child.
| Container | ||
setConstraintValue(constraintName:String, value:*):void
Sets a layout constraint value, which is the same as
setting the constraint style for this component.
| UIComponent | ||
setCurrentState(stateName:String, playTransition:Boolean = true):void
Set the current state.
| UIComponent | ||
setFocus():void
Sets the focus to this component.
| UIComponent | ||
setStyle(styleProp:String, newValue:*):void
Sets a style property on this component instance.
| UIComponent | ||
setVisible(value:Boolean, noEvent:Boolean = false):void
Called when the
visible property changes. | UIComponent | ||
setVisible_unprotected(value:Boolean, noEvent:Boolean = false):void
Same as setVisible, but cannot be prevented.
| UIComponent | ||
styleChanged(styleProp:String):void
Detects changes to style properties.
| UIComponent | ||
stylesInitialized():void
Flex calls the
stylesInitialized() method when
the styles for a component are first initialized. | UIComponent | ||
suspendBackgroundProcessing():void
[static]
Blocks the background processing of methods
queued by
callLater() ,
until resumeBackgroundProcessing() is called. | UIComponent | ||
toString():String
Returns a string indicating the location of this object
within the hierarchy of DisplayObjects in the Application.
| FlexSprite | ||
validateDisplayList():void
Validates the position and size of children and draws other
visuals.
| UIComponent | ||
validateNow():void
Validate and update the properties and layout of this object
and redraw it, if necessary.
| UIComponent | ||
validateProperties():void
Used by layout logic to validate the properties of a component
by calling the
commitProperties() method. | UIComponent | ||
validateSize(recursive:Boolean = false):void
Validates the measured size of the component
If the
LayoutManager.invalidateSize() method is called with
this ILayoutManagerClient, then the validateSize() method
is called when it's time to do measurements. | UIComponent | ||
validationResultHandler(event:ValidationResultEvent):void
Handles both the
valid and invalid events from a
validator assigned to this component. | UIComponent | ||
verticalGradientMatrix(x:Number, y:Number, width:Number, height:Number):Matrix
Returns a box Matrix which can be passed to
drawRoundRect()
as the rot parameter when drawing a vertical gradient. | UIComponent |
Method | Defined by | ||
---|---|---|---|
adjustFocusRect(obj:DisplayObject = null):void
Adjust the focus rectangle.
| UIComponent | ||
attachOverlay():void
Used internally by the Dissolve Effect to add the overlay to the chrome of a container.
| Container | ||
childrenCreated():void
Performs any final processing after child objects are created.
| UIComponent | ||
commitProperties():void
Processes the properties set on the component.
| UIComponent | ||
createBorder():void
Creates the container's border skin
if it is needed and does not already exist.
| Container | ||
createChildren():void
| GallerySelector | ||
createInFontContext(classObj:Class):Object
Creates a new object using a context
based on the embedded font being used.
| UIComponent | ||
createInModuleContext(moduleFactory:IFlexModuleFactory, className:String):Object
Creates the object using a given moduleFactory.
| UIComponent | ||
focusInHandler(event:FocusEvent):void
The event handler called when a UIComponent object gets focus.
| UIComponent | ||
focusOutHandler(event:FocusEvent):void
The event handler called when a UIComponent object loses focus.
| UIComponent | ||
initializationComplete():void
Finalizes the initialization of this component.
| UIComponent | ||
initializeAccessibility():void
Initializes this component's accessibility code.
| UIComponent | ||
isOurFocus(target:DisplayObject):Boolean
Typically overridden by components containing UITextField objects,
where the UITextField object gets focus.
| UIComponent | ||
keyDownHandler(event:KeyboardEvent):void
The event handler called for a
keyDown event. | UIComponent | ||
keyUpHandler(event:KeyboardEvent):void
The event handler called for a
keyUp event. | UIComponent | ||
layoutChrome(unscaledWidth:Number, unscaledHeight:Number):void
Respond to size changes by setting the positions and sizes
of this container's borders.
| Container | ||
measure():void
| GallerySelector | ||
resourcesChanged():void
This method is called when a UIComponent is constructed,
and again whenever the ResourceManager dispatches
a
"change" Event to indicate
that the localized resources have changed in some way. | UIComponent | ||
scrollChildren():void
Positions the container's content area relative to the viewable area
based on the horizontalScrollPosition and verticalScrollPosition properties.
| Container | ||
updateDisplayList(w:Number, h:Number):void
| GallerySelector |
Event | Summary | Defined by | ||
---|---|---|---|---|
Dispatched when the component is added to a container as a content child
by using the addChild() or addChildAt() method. | UIComponent | |||
Dispatched after a child has been added to a container. | Container | |||
Dispatched after the index (among the container children) of a container child changes. | Container | |||
Dispatched before a child of a container is removed. | Container | |||
Dispatched when the component has finished its construction, property processing, measuring, layout, and drawing. | UIComponent | |||
Dispatched after the view state has changed. | UIComponent | |||
Dispatched after the currentState property changes,
but before the view state changes. | UIComponent | |||
Dispatched when the data property changes. | Container | |||
Dispatched by the drag initiator (the component that is the source of the data being dragged) when the drag operation completes, either when you drop the dragged data onto a drop target or when you end the drag-and-drop operation without performing a drop. | UIComponent | |||
Dispatched by the drop target when the user releases the mouse over it. | UIComponent | |||
Dispatched by a component when the user moves the mouse over the component during a drag operation. | UIComponent | |||
Dispatched by the component when the user drags outside the component, but does not drop the data onto the target. | UIComponent | |||
Dispatched by a component when the user moves the mouse while over the component during a drag operation. | UIComponent | |||
Dispatched by the drag initiator when starting a drag operation. | UIComponent | |||
Dispatched after an effect ends. | UIComponent | |||
Dispatched just before an effect starts. | UIComponent | |||
Dispatched after the component has returned to the root view state. | UIComponent | |||
Dispatched before the component exits from the root view state. | UIComponent | |||
The SlideshowEvent.GALLERYITEM_CLICK constant defines the value of the
type property of the event object for a galleryItemClick event. | GallerySelector | |||
Dispatched when an object's state changes from visible to invisible. | UIComponent | |||
Dispatched when the component has finished its construction and has all initialization properties set. | UIComponent | |||
Dispatched when a component is monitored by a Validator and the validation failed. | UIComponent | |||
Dispatched from a component opened using the PopUpManager when the user clicks outside it. | UIComponent | |||
Dispatched from a component opened using the PopUpManager when the user scrolls the mouse wheel outside it. | UIComponent | |||
Dispatched when the object has moved. | UIComponent | |||
Dispatched at the beginning of the component initialization sequence. | UIComponent | |||
Dispatched when the component is about to be hidden (visible = false); calling event.preventDefault() will stop the action from occuring. | UIComponent | |||
Dispatched when the component is about to be moved via move(); calling event.preventDefault() will stop the action from occuring. | UIComponent | |||
Dispatched when the component is about to be shown (visible = true); calling event.preventDefault() will stop the action from occuring. | UIComponent | |||
Dispatched when the component is about to be sized via setActualSize(); calling event.preventDefault() will stop the action from occuring. | UIComponent | |||
Dispatched when the component is removed from a container as a content child
by using the removeChild() or removeChildAt() method. | UIComponent | |||
Dispatched when the component is resized. | UIComponent | |||
Dispatched when the user manually scrolls the container. | Container | |||
Dispatched when an object's state changes from invisible to visible. | UIComponent | |||
Dispatched by the component when it is time to create a ToolTip. | UIComponent | |||
Dispatched by the component when its ToolTip has been hidden and will be discarded soon. | UIComponent | |||
Dispatched by the component when its ToolTip is about to be hidden. | UIComponent | |||
Dispatched by the component when its ToolTip is about to be shown. | UIComponent | |||
Dispatched by the component when its ToolTip has been shown. | UIComponent | |||
Dispatched by a component whose toolTip property is set,
as soon as the user moves the mouse over it. | UIComponent | |||
Dispatched when an object has had its commitProperties() ,
measure() , and
updateDisplayList() methods called (if needed). | UIComponent | |||
Dispatched when a component is monitored by a Validator and the validation succeeded. | UIComponent | |||
Dispatched when values are changed programmatically or by user interaction. | UIComponent |
Style | Description | Defined by | ||
---|---|---|---|---|
Type: Number CSS Inheritance: no Alpha level of the color defined by the backgroundColor
property, of the image or SWF file defined by the backgroundImage
style. | Container | |||
Type: String CSS Inheritance: no If a background image is specified, this style specifies whether it is fixed with regard to the viewport ( "fixed" )
or scrolls along with the content ("scroll" ). | Container | |||
Type: uint Format: Color CSS Inheritance: no Background color of a component. | Container | |||
Type: uint Format: Color CSS Inheritance: yes Background color of the component when it is disabled. | Container | |||
Type: Object Format: File CSS Inheritance: no Background image of a component. | Container | |||
Type: String CSS Inheritance: no Scales the image specified by backgroundImage
to different percentage sizes. | Container | |||
Type: uint Format: Color CSS Inheritance: yes Determines the color of a ProgressBar. | Container | |||
Type: String CSS Inheritance: no The vertical distance in pixels from the top edge of the content area to the control's baseline position. | UIComponent | |||
Type: uint Format: Color CSS Inheritance: no Color of the border. | Container | |||
Type: String CSS Inheritance: no Bounding box sides. | Container | |||
Type: Class CSS Inheritance: no The border skin class of the component. | Container | |||
Type: String CSS Inheritance: no Bounding box style. | Container | |||
Type: Number Format: Length CSS Inheritance: no Bounding box thickness. | Container | |||
Type: String CSS Inheritance: no The vertical distance in pixels from the lower edge of the component to the lower edge of its content area. | UIComponent | |||
Type: Number CSS Inheritance: no The color brightness of the component. | UIComponent | |||
Type: uint Format: Color CSS Inheritance: yes Color of text in the component, including the component label. | Container | |||
columns
| Type: Number CSS Inheritance: no Specifies the number of columns in the GallerySelector's layout. The gallery items are laid out horizontally left to right until a row is full, then a new row is started. The default value is 2 . | GallerySelector | ||
Type: Number CSS Inheritance: no The color contrast of the component. | UIComponent | |||
Type: Number Format: Length CSS Inheritance: no Radius of component corners. | Container | |||
Type: uint Format: Color CSS Inheritance: yes Color of text in the component if it is disabled. | Container | |||
Type: Number CSS Inheritance: no The alpha value for the overlay that is placed on top of the container when it is disabled. | Container | |||
displayType
| Type: String Format: Enumerated CSS Inheritance: no If no custom ItemDescriptor has been specified, specifies the type of item renderer which will be used.
The default value of "standard" displays a small thumbnail image, title, and description text for each gallery. Another
option, "images" , displays only a large thumbnail/preview image. The "imagesHoverTitle" option displays
a larger (200x200) gallery thumbnail, with each directly adjacent to the next; when an item is hovered over, an overlay box with the
gallery title slides out of the bottom.
The default value is "standard" . | GallerySelector | ||
Type: uint Format: Color CSS Inheritance: yes Color of the drop shadow. | Container | |||
Type: Boolean CSS Inheritance: no Boolean property that specifies whether the component has a visible drop shadow. | Container | |||
Type: uint Format: Color CSS Inheritance: yes Color of the component highlight when validation fails. | UIComponent | |||
Type: String CSS Inheritance: yes Sets the antiAliasType property of internal TextFields. | Container | |||
Type: String CSS Inheritance: yes Name of the font to use. | Container | |||
Type: String CSS Inheritance: yes Sets the gridFitType property of internal TextFields that represent text in Flex controls. | Container | |||
Type: Number CSS Inheritance: yes Sets the sharpness property of internal TextFields that represent text in Flex controls. | Container | |||
Type: Number Format: Length CSS Inheritance: yes Height of the text, in pixels. | Container | |||
Type: String CSS Inheritance: yes Determines whether the text is italic font. | Container | |||
Type: Number CSS Inheritance: yes Sets the thickness property of internal TextFields that represent text in Flex controls. | Container | |||
Type: String CSS Inheritance: yes Determines whether the text is boldface. | Container | |||
hideOnSelection
| Type: Boolean CSS Inheritance: no Specifies if the default internal galleryItemClick handler should hide the actual GallerySelector element when a gallery item is clicked.
If enabled, the visible property will be set to false when a gallery selection is made, hiding the selector. This allows
for the GallerySelector element to be floated on top of the image display, and it will hide automatically once a selection has been made.
For more information, see the false . | GallerySelector | ||
Type: String CSS Inheritance: no Horizontal alignment of children in the container. | Box | |||
Type: String CSS Inheritance: no The horizontal distance in pixels from the center of the component's content area to the center of the component. | UIComponent | |||
Type: Number Format: Length CSS Inheritance: no Number of pixels between children in the horizontal direction. | Box | |||
Type: String CSS Inheritance: no The name of the horizontal scrollbar style. | Container | |||
Type: Number CSS Inheritance: no The color hue of the component. | UIComponent | |||
imageHeight
| Type: Number Format: Length CSS Inheritance: no Specifies the minimum height of the gallery thumbnail/preview image when using the "images" displayType parameter.
If a custom ItemDescriptor value has been specified, this parameter has no effect.
If using the "images" 100 . | GallerySelector | ||
Type: Boolean CSS Inheritance: yes A Boolean value that indicates whether kerning is enabled ( true ) or disabled (false ). | Container | |||
Type: String CSS Inheritance: no The horizontal distance in pixels from the left edge of the component's content area to the left edge of the component. | UIComponent | |||
Type: Number CSS Inheritance: yes The number of additional pixels to appear between each character. | Container | |||
Type: Number CSS Inheritance: no The opacity of the component. | UIComponent | |||
outerSpacing
| Type: Number Format: Length CSS Inheritance: no Specifies the spacing between the edges of the GallerySelector element and each of the gallery items. This value differs from spacing in that is only used to determine the spacing on the outer edges of the element.
If not specified, the default value is the value specified for the | GallerySelector | ||
Type: Number Format: Length CSS Inheritance: no Number of pixels between the container's bottom border and the bottom of its content area. | Box | |||
Type: Number Format: Length CSS Inheritance: no Number of pixels between the component's left border and the left edge of its content area. | Container | |||
Type: Number Format: Length CSS Inheritance: no Number of pixels between the component's right border and the right edge of its content area. | Container | |||
Type: Number Format: Length CSS Inheritance: no Number of pixels between the container's top border and the top of its content area. | Box | |||
Type: String CSS Inheritance: no The horizontal distance in pixels from the right edge of the component to the right edge of its content area. | UIComponent | |||
Type: Number CSS Inheritance: no The color saturation of the component. | UIComponent | |||
selectionDelay
| Type: Number Format: Time CSS Inheritance: no Specifies the delay before the requested gallery is actually opened by the default internal galleryItemClick handler when a gallery item is clicked.
This can be used to allow a layout transition to complete before a new gallery actually opens.
The value is denominated in milliseconds, with a value of 0 indicating no delay should be used. The default value depends on whether a | GallerySelector | ||
selectionLayoutView
| Type: String Format: LayoutViewID CSS Inheritance: no Specifies which (if any) layout view should be opened by the default internal galleryItemClick handler when a gallery item is clicked.
If set to a string value, the layout view with the corresponding ID will be opened when a gallery has been selected.
The default value is null . | GallerySelector | ||
Type: String CSS Inheritance: no Direction of the drop shadow. | Container | |||
Type: Number Format: Length CSS Inheritance: no Distance of the drop shadow. | Container | |||
spacing
| Type: Number Format: Length CSS Inheritance: no Specifies the spacing between each of the gallery items; this is the spacing between each row and column. The default value is 10 . | GallerySelector | ||
statusLabel
| Type: String CSS Inheritance: no When using the default paging controls, specifies the text displayed on the paging label. If a custom PagingControls descriptor has been defined, this parameter has no relevance. It can be customized to
localize the displayed text.
The following values in the text are automatically replaced: "Page {N} of {T}" . | GallerySelector | ||
Type: String CSS Inheritance: yes Alignment of text within a container. | Container | |||
Type: String CSS Inheritance: yes Determines whether the text is underlined. | Container | |||
Type: Number Format: Length CSS Inheritance: yes Offset of first line of text from the left side of the container, in pixels. | Container | |||
Type: uint Format: Color CSS Inheritance: yes Theme color of a component. | UIComponent | |||
Type: String CSS Inheritance: no The vertical distance in pixels from the top edge of the control's content area to the top edge of the component. | UIComponent | |||
transitionTime
| Type: Number Format: Time CSS Inheritance: no Specifies the duration, in milliseconds, of the scrolling effect between each of the pages. To have an instantaneous transition (with no tweening effect), set the duration to a very small value such as 1. The default value is 1000 . | GallerySelector | ||
transitionTime
| Type: Number Format: Time CSS Inheritance: no Specifies the duration, in milliseconds, of the gallery item hover effect when using the "standard" displayType parameter.
If a custom ItemDescriptor value has been specified, this parameter has no effect.
The default value is 1000 . | GallerySelector | ||
Type: String CSS Inheritance: no Vertical alignment of children in the container. | Box | |||
Type: String CSS Inheritance: no The vertical distance in pixels from the center of the component's content area to the center of the component. | UIComponent | |||
Type: Number Format: Length CSS Inheritance: no Number of pixels between children in the vertical direction. | Box | |||
Type: String CSS Inheritance: no The name of the vertical scrollbar style. | Container |
ItemDescriptor | property |
public var ItemDescriptor:XML
[Pseudo-property only!] Specifies the XML descriptor used for the creation of the item blocks which represent each gallery. A custom value can be used to customize the appearance of the 'clickable' items which are shown on the GallerySelector.
This is a pseudo-property; it is passed as a child node of the XML node, not as an element attribute. See the class description above for more information / example code.
There are two very important things to note about custom ItemDescriptor
's:
<ItemDescriptor>
node must have only one direct subnode. This container will have its dimensions automatically set based on the columns
style parameter; it is not necessary to specify any dimensions.currentLooperData
object. This provides
a reference to the <gallery>
node for the current gallery. For more information about the Eval{...}
attribute format, see the documentation for the EVAL_EXPRESSION
constant on the XMLAttributeFormats
class.If this property is not explicitly specified, there are three possible default descriptors based on the value of the displayType
style parameter: (1) The "standard"
display which
displays the gallery's thumbnail image, title, and description; (2) The "images"
view, which only displays a large version of the gallery's thumbnail image; (3) The "imagesHoverTitle"
view, which displays a larger gallery thumbnail (with each directly touching the next), and title text that pops up when hovering on an item. The descriptor for the "standard"
display is:
See also
PagingControls | property |
public var PagingControls:XML
[Pseudo-property only!] Specifies the XML descriptor used for the creation of the paging controls (if there is more than one page of galleries to be shown). A custom value can be used to customize the appearance of the paging controls.
This is a pseudo-property; it is passed as a child node of the XML node, not as an element attribute. See the class description above for more information / example code.
If this property is not explicitly specified, the following default descriptor is used:
<PagingControls [Becomes HBox; see below...] paddingTop="10" paddingBottom="10" horizontalAlign="center" verticalAlign="middle" horizontalGap="24"> <Button name="previousButton" skin="ClassReference('com.dwuser.ss4.skins.PreviousButtonSkin')" styleName="GalleryPagingPreviousButton" /> <Label name="pagingLabel" text="statusLabel style value; default = Page {N} of {T}" /> <Button name="nextButton" skin="ClassReference('com.dwuser.ss4.skins.NextButtonSkin')" styleName="GalleryPagingNextButton" /> </PagingControls>
Either way, the descriptor must have at least one child element of the following structure:
<Button name="previousButton" ... />
- This button automatically becomes the "go to previous page" button.<Label name="pagingLabel" text="Page {N} of {T}" ... />
- The text
property on this label will have the following values replaced automatically:
{N}
becomes the current page number; {T}
becomes the total number of pages. Thus, if there were three pages and the first page was visible,
the example label shown above would read "Page 1 of 3". When you don't specify a custom paging controls descriptor, the status label displayed is controlled
by the value of the statusLabel
style parameter.<Button name="nextButton" ... />
- This button automatically becomes the "go to next page" button.Please note! To work properly, the elements must be exactly as shown: a <Button ... />
element named previousButton
, a
<Label ... />
element named pagingLabel
, and a <Button ... />
element named nextButton
.
If you don't use these special names, the correct values won't be automatically displayed.
All paging control elements are held in an HBox
element which is positioned at the bottom of the GallerySelector. Any attributes passed directly on a custom
<PagingControls ... >
descriptor node will be applied to this HBox. Thus, in the example above, custom padding, alignment and spacing has been set.
By default, if no custom descriptor is specified, the "Previous" button inherits any styles defined for the <GalleryPagingPreviousButton ... />
selector in the
<styles>
section of the XML configuration file. Likewise, the "Next" button inherits any styles defined for the <GalleryPagingNextButton ... />
selector, and the status label inherits any styles defined for the <GalleryPagingLabel ... />
selector. These custom style selectors can be used to define customized
styles for the buttons and status label without creating a custom descriptor. However, in some cases it may be easier to just
create a custom paging controls descriptor. For more information about creating these custom style selectors, see the GalleryPagingPreviousButton
, GalleryPagingNextButton
,
and GalleryPagingLable
style selector pseudo-classes; see links below.
See also
slideshow | property |
public var slideshow:FlashSlideshow
A reference to the main slideshow
GallerySelector | () | constructor |
public function GallerySelector()
createChildren | () | method |
protected override function createChildren():void
measure | () | method |
protected override function measure():void
updateDisplayList | () | method |
protected override function updateDisplayList(w:Number, h:Number):void
Parameters
w:Number |
|
h:Number |
galleryItemClick | event |
com.dwuser.ss4.events.SlideshowEvent
com.dwuser.ss4.events.SlideshowEvent.GALLERYITEM_CLICK
The SlideshowEvent.GALLERYITEM_CLICK
constant defines the value of the
type
property of the event object for a galleryItemClick
event.
Dispatched automatically by a GallerySelector
element instance when an item in it is clicked. To create a custom handler for this event,
add a listener for the event on the actual GallerySelector element; see the GallerySelector class for more information.
By default, the built-in handler on the GallerySelector handles the event, opening the corresponding gallery and, if the hideOnSelection
style
parameter is set to true
, hiding the GallerySelector element.
If you wish to prevent the default handler from processing the event, add a custom listener
and call the preventDefault()
method on the event. For example:
// Normally, a custom action would follow the preventDefault() call: <GallerySelector ... event_galleryItemClick="event.preventDefault();" />
Event type: on-globalNotification-only (see SlideshowEvent class description for more information)
The extraInfo
parameter on the event has the following parameters:
Property | Description | Always Present |
---|---|---|
id | The associated gallery's ID index number. This can be used to dispatch a IMAGES_REQUESTGALLERY control event to open the corresponding gallery. | Yes |
