Package | com.dwuser.ss4.ui |
Class | public class IndividualSlideImage |
Inheritance | IndividualSlideImage SuperImage UIComponent FlexSprite flash.display.Sprite |
IndividualSlideImage
style values which can be applied in the <styles>
section
of the XML configuration file. This element is never used to create standalone elements in the Layout XML; instead, it is automatically created internally
by the IndividualSlide
.
Important note: There are four styles on the SuperImage
class (which this class extends) that are NOT inherited by the IndividualSlideImage.
These styles are instead defined on / retrieved from the IndividualSlide
style selector (see that class for more information about each of these parameters and
how to define them parameters). These style parameters are: scaleMode
, useWatermark
, horizontalAlign
, and verticalAlign
.
The settings on this class / style selector control the effects directly applied to each image, most notably (1) Image border, (2) Image Matte, and (3) Drop shadow.
By changing the borderThickness
and borderColor
parameters, you can add a border around the image. By changing the padding settings
(paddingLeft
, paddingRight
, paddingTop
, and paddingBottom
parameters), you can make a matte visible around the edges of the
image. The color and opacity of this matte are controlled by the backgroundColor
and backgroundAlpha
parameters. By changing the dropShadowEnabled
parameter, you can display a drop shadow behind the image.
Style XML Implementation Example:
The following example code goes in the <styles>
section of the main <slideshow>
holder node in a slideshow XML configuration file.
The IndividualSlideImage class inherits all of the style tag attributes of its superclass, EXCEPT those noted above!
<styles> ... <IndividualSlideImage Commonly Edited Styles (Inherited; Default values are shown) borderColor="#B7BABC" borderThickness="0" backgroundColor="undefined" backgroundAlpha="1" paddingLeft="0" paddingRight="0" paddingTop="0 paddingBottom="0" dropShadowEnabled="false" /> ... </styles>

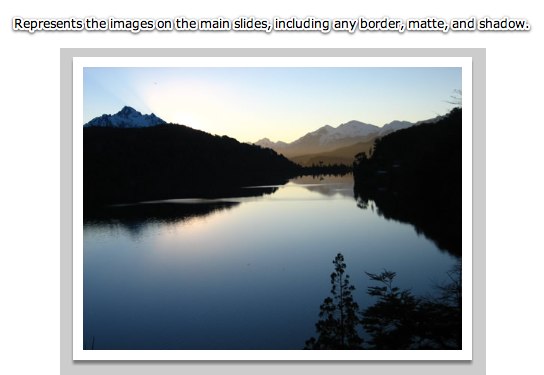

Element Pictorial Example:
See also
Method | Defined by | ||
---|---|---|---|
IndividualSlideImage | |||
callLater(method:Function, args:Array = null):void
Queues a function to be called later.
| UIComponent | ||
clearStyle(styleProp:String):void
Deletes a style property from this component instance.
| UIComponent | ||
contentToGlobal(point:Point):Point
Converts a
Point object from content coordinates to global coordinates. | UIComponent | ||
contentToLocal(point:Point):Point
Converts a
Point object from content to local coordinates. | UIComponent | ||
createAutomationIDPart(child:IAutomationObject):Object
Returns a set of properties that identify the child within
this container.
| UIComponent | ||
createReferenceOnParentDocument(parentDocument:IFlexDisplayObject):void
Creates an
id reference to this IUIComponent object
on its parent document object. | UIComponent | ||
deleteReferenceOnParentDocument(parentDocument:IFlexDisplayObject):void
Deletes the
id reference to this IUIComponent object
on its parent document object. | UIComponent | ||
Returns a UITextFormat object corresponding to the text styles
for this UIComponent.
| UIComponent | ||
dispatchEvent(event:Event):Boolean
Dispatches an event into the event flow.
| UIComponent | ||
drawFocus(isFocused:Boolean):void
Shows or hides the focus indicator around this component.
| UIComponent | ||
drawRoundRect(x:Number, y:Number, w:Number, h:Number, r:Object = null, c:Object = null, alpha:Object = null, rot:Object = null, gradient:String = null, ratios:Array = null, hole:Object = null):void
Programatically draws a rectangle into this skin's Graphics object.
| UIComponent | ||
effectFinished(effectInst:IEffectInstance):void
Called by the effect instance when it stops playing on the component.
| UIComponent | ||
effectStarted(effectInst:IEffectInstance):void
Called by the effect instance when it starts playing on the component.
| UIComponent | ||
endEffectsStarted():void
Ends all currently playing effects on the component.
| UIComponent | ||
executeBindings(recurse:Boolean = false):void
Executes the data bindings into this UIComponent object.
| UIComponent | ||
finishPrint(obj:Object, target:IFlexDisplayObject):void
Called after printing is complete.
| UIComponent | ||
getAutomationChildAt(index:int):IAutomationObject
Provides the automation object at the specified index.
| UIComponent | ||
getClassStyleDeclarations():Array
Finds the type selectors for this UIComponent instance.
| UIComponent | ||
getConstraintValue(constraintName:String):*
Returns a layout constraint value, which is the same as
getting the constraint style for this component.
| UIComponent | ||
getDescendantByName(name:String):DisplayObject
Searches all children for the first child named with the passed value; returns that child, or null if not found.
| UIComponent | ||
getDescendantsByName(name:String):Array
Searches all children for all children named with the passed value; returns an array with those children, or an empty array if none found.
| UIComponent | ||
getExplicitOrMeasuredHeight():Number
A convenience method for determining whether to use the
explicit or measured height
| UIComponent | ||
getExplicitOrMeasuredWidth():Number
A convenience method for determining whether to use the
explicit or measured width
| UIComponent | ||
getFocus():InteractiveObject
Gets the object that currently has focus.
| UIComponent | ||
getRepeaterItem(whichRepeater:int = -1):Object
Returns the item in the
dataProvider that was used
by the specified Repeater to produce this Repeater, or
null if this Repeater isn't repeated. | UIComponent | ||
getStyle(styleProp:String):*
Gets a style property that has been set anywhere in this
component's style lookup chain.
| UIComponent | ||
getVisibleRect(targetParent:DisplayObject = null):Rectangle
MOVED OVER FROM SDK 3.2 UIComponent - Allows for popped-up alerts to be displayed correctly - NGR MOVED 11-20-08
| UIComponent | ||
globalToContent(point:Point):Point
Converts a
Point object from global to content coordinates. | UIComponent | ||
horizontalGradientMatrix(x:Number, y:Number, width:Number, height:Number):Matrix
Returns a box Matrix which can be passed to the
drawRoundRect() method
as the rot parameter when drawing a horizontal gradient. | UIComponent | ||
initialize():void
Initializes the internal structure of this component.
| UIComponent | ||
initializeRepeaterArrays(parent:IRepeaterClient):void
Initializes various properties which keep track of repeated instances
of this component.
| UIComponent | ||
invalidateDisplayList():void
Marks a component so that its
updateDisplayList()
method gets called during a later screen update. | UIComponent | ||
invalidateProperties():void
Marks a component so that its
commitProperties()
method gets called during a later screen update. | UIComponent | ||
invalidateSize():void
Marks a component so that its
measure()
method gets called during a later screen update. | UIComponent | ||
localToContent(point:Point):Point
Converts a
Point object from local to content coordinates. | UIComponent | ||
measureHTMLText(htmlText:String):TextLineMetrics
Measures the specified HTML text, which may contain HTML tags such
as
<font> and <b> ,
assuming that it is displayed
in a single-line UITextField using a UITextFormat
determined by the styles of this UIComponent. | UIComponent | ||
measureText(text:String):TextLineMetrics
Measures the specified text, assuming that it is displayed
in a single-line UITextField using a UITextFormat
determined by the styles of this UIComponent.
| UIComponent | ||
move(x:Number, y:Number):void
Moves the component to a specified position within its parent.
| UIComponent | ||
move_unprotected(x:Number, y:Number):void
Same as move, but cannot be prevented via the protection_move event.
| UIComponent | ||
notifyStyleChangeInChildren(styleProp:String, recursive:Boolean):void
Propagates style changes to the children.
| UIComponent | ||
owns(child:DisplayObject):Boolean
Returns
true if the chain of owner properties
points from child to this UIComponent. | UIComponent | ||
parentChanged(p:DisplayObjectContainer):void
Called by Flex when a UIComponent object is added to or removed from a parent.
| UIComponent | ||
prepareToPrint(target:IFlexDisplayObject):Object
Prepares an IFlexDisplayObject for printing.
| UIComponent | ||
regenerateStyleCache(recursive:Boolean):void
Builds or rebuilds the CSS style cache for this component
and, if the
recursive parameter is true ,
for all descendants of this component as well. | UIComponent | ||
registerEffects(effects:Array):void
For each effect event, registers the EffectManager
as one of the event listeners.
| UIComponent | ||
replayAutomatableEvent(event:Event):Boolean
Replays the specified event.
| UIComponent | ||
resolveAutomationIDPart(criteria:Object):Array
Resolves a child by using the id provided.
| UIComponent | ||
resumeBackgroundProcessing():void
[static]
Resumes the background processing of methods
queued by
callLater() , after a call to
suspendBackgroundProcessing() . | UIComponent | ||
setActualSize(w:Number, h:Number):void
Sizes the object.
| UIComponent | ||
setActualSize_unprotected(w:Number, h:Number):void
Same as setActualSize, but is not cancelable via the protection_size event.
| UIComponent | ||
setConstraintValue(constraintName:String, value:*):void
Sets a layout constraint value, which is the same as
setting the constraint style for this component.
| UIComponent | ||
setCurrentState(stateName:String, playTransition:Boolean = true):void
Set the current state.
| UIComponent | ||
setFocus():void
Sets the focus to this component.
| UIComponent | ||
setStyle(styleProp:String, newValue:*):void
Sets a style property on this component instance.
| UIComponent | ||
setVisible(value:Boolean, noEvent:Boolean = false):void
Called when the
visible property changes. | UIComponent | ||
setVisible_unprotected(value:Boolean, noEvent:Boolean = false):void
Same as setVisible, but cannot be prevented.
| UIComponent | ||
styleChanged(styleProp:String):void
| SuperImage | ||
stylesInitialized():void
Flex calls the
stylesInitialized() method when
the styles for a component are first initialized. | UIComponent | ||
suspendBackgroundProcessing():void
[static]
Blocks the background processing of methods
queued by
callLater() ,
until resumeBackgroundProcessing() is called. | UIComponent | ||
toString():String
Returns a string indicating the location of this object
within the hierarchy of DisplayObjects in the Application.
| FlexSprite | ||
validateDisplayList():void
Validates the position and size of children and draws other
visuals.
| UIComponent | ||
validateNow():void
Validate and update the properties and layout of this object
and redraw it, if necessary.
| UIComponent | ||
validateProperties():void
Used by layout logic to validate the properties of a component
by calling the
commitProperties() method. | UIComponent | ||
validateSize(recursive:Boolean = false):void
Validates the measured size of the component
If the
LayoutManager.invalidateSize() method is called with
this ILayoutManagerClient, then the validateSize() method
is called when it's time to do measurements. | UIComponent | ||
validationResultHandler(event:ValidationResultEvent):void
Handles both the
valid and invalid events from a
validator assigned to this component. | UIComponent | ||
verticalGradientMatrix(x:Number, y:Number, width:Number, height:Number):Matrix
Returns a box Matrix which can be passed to
drawRoundRect()
as the rot parameter when drawing a vertical gradient. | UIComponent |
